Professional Agricultural Drone AL4-22

Product Detail

Product Tags

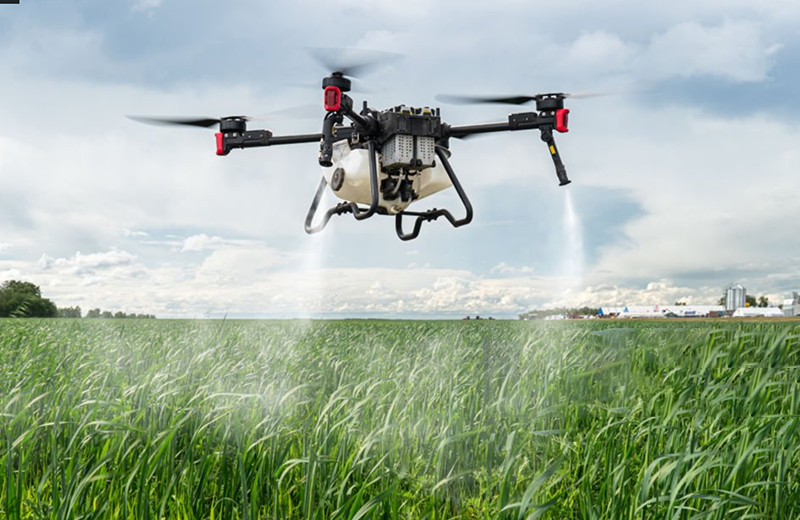

AL4-22 Agricultural Drone

Engineered for wide-range precision spraying with intelligent flight control and enhanced operational safety.

AL4-22 Agricultural Drone

Engineered for wide-range precision spraying with intelligent flight control and enhanced operational safety.

WORK IN THE RAIN

Waterproof class :lP67. Core components waterproof, Internal equipment waterproof, dust-proof, line protection.

Learn More >>

WORK IN THE RAIN

Waterproof class :lP67. Core components waterproof, Internal equipment waterproof, dust-proof, line protection.

Learn More >>

EASY TO OPERATE

Why Choose AL4-22 ?

High-Efficiency Spraying

Powerful output covers large farmland rapidly while maintaining precise droplet atomization. Uniform penetration ensures consistent crop protection and higher operational productivity.

Easy Operation & Low Maintenance

Modular quick-swap tank and battery minimize downtime during intensive farming seasons.IP67-rated core components provide long-lasting durability and simplified servicing.

Portable & Ready to Deploy

Foldable truss frame significantly reduces storage size for effortless transport in any vehicle.Fully calibrated and tested before shipment—unbox, unfold, and take off immediately.

Eco-Smart & Cost-Effective

High-atomization nozzles cut pesticide usage by over 20% without compromising coverage.Reduced drift and resource savings lower long-term labor and chemical costs.

Downward Pressure Windfield

Stable downward pressure wind field, pesticides can be penetrated directly to the bottom of crops.

Efficient Mission Planning with Saved Maps

Automate route generation and reuse pre-defined maps to eliminate repetitive setup for recurring operations.

Downward Pressure Windfield

Stable downward pressure wind field, pesticides can be penetrated directly to the bottom of crops.

Centrifugal Nozzle

Omnidirectional 360° sowing, uniform distribution, no leakage. Suitable for sowing solid fertilizer, seeds, feed, etc.

120° wide Angle lighting + HD camera

Dual led headlights and profile indicators ensure safe flight at night.

Specs of AL4-22

Item	Specification
Drone configuration	22L complete machine; 1* H12 remote control + front-drive power supply; 1* application software; !Fuel Tough Seedling Cluster; Ground Penetrating Radar: 1* smart battery; 1* smart charger 3000W; 1* toolbox; 1* aviation aluminum case.
Dimensions(closed)	860 mm x 730 mm x 690 mm
Dimensions(open)	2025 mm x 1970 mm x 690 mm
Net weight	19.5 kg
Pesticide load	22L / 20 kg
Max take-off weight	55 kg
Spray area	7-9 m
Spray efficiency	9-12 hectares/hour
Nozzle	8 pcs centrifugal nozzles
Spray speed	0-12 m/s
Flying height	0-60 m
Work temperature	-10~45℃
Smart battery	14S 22000 mAh
Smart charger	H12
Packing size	1180 mm x 760 mm x 730 mm
Packing weight	90 kg
