MMC M12 Professional Drone for Long-Range Commercial Use
MMC M12
Redefines the Efficiency Limits of VTOL Fixed-Wing Drones
Long-Endurance Hybrid-Wing VTOL
The MMC M12, a hybrid-wing VTOL drone with quad-rotor takeoff and engine-powered flight, delivers extended endurance, heavy payload capacity, long range, and stable performance.
Learn More >>

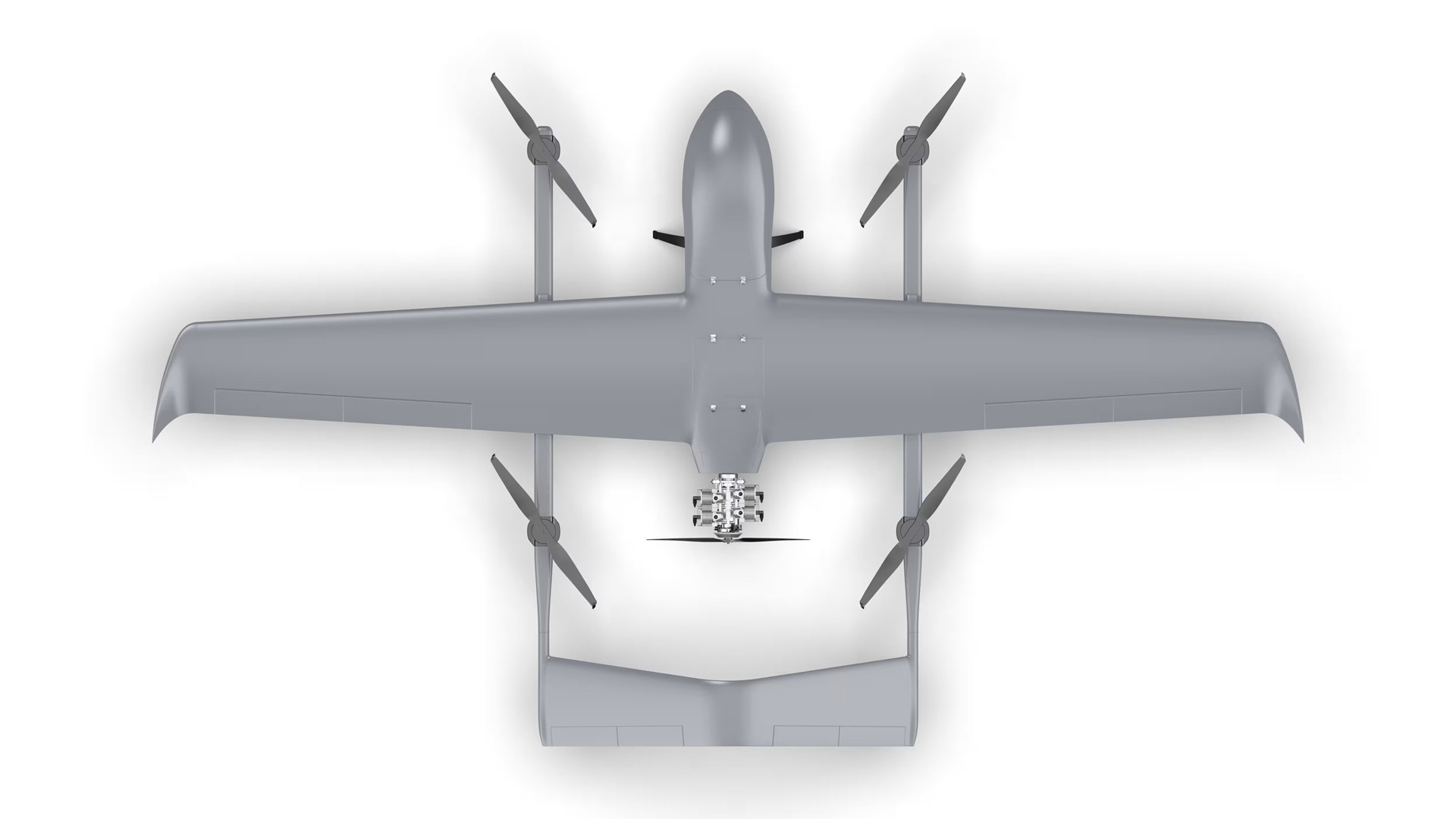

Superior Aerodynamic Efficiency
The MMC M12 features a high lift-to-drag ratio wing design, ensuring excellent lift and climb rates at 55kg payload, with fuel-efficient cruising and reliable high-altitude performance.
Why Choose MCC M12?
Autonomous VTOL Operations
The MMC M12 enables fully autonomous takeoff and landing with superior terrain adaptability, minimizing manual intervention for efficient missions.
Rapid Single-Person Deployment
The MMC M12 features a tool-free quick-disassembly design, allowing single-person assembly in just 3 minutes for instant mission readiness.
Heavy Payload & Extended Endurance
The MMC M12 supports up to 55kg payload with 240–420 minute flight times and ≥600km range (25kg load), ideal for long-haul operations.
Stable Twin-Boom Performance
The MMC M12's twin-boom platform delivers stable flight under heavy loads, with Level 7 wind resistance and IP54 protection for rescue, patrol, and inspections.
Exceptional Endurance & Payload Capacity
The MMC M12 drone offers up to 420 minutes of flight time and a 55kg payload, ideal for demanding, long-duration missions.
High-Voltage Power Line Inspection
The MMC M12 drone enhances efficiency by 8x for 100km power line inspections, detecting 3 abnormal hotspots with precision.
Autonomous Hybrid-Wing VTOL
The MMC M12 features fully autonomous takeoff/landing with quad-rotor and engine-powered flight, offering strong terrain adaptability and high maneuverability.
Rapid Tool-Free Deployment
The MMC M12 drone features a tool-free, quick-disassembly design, enabling single-person assembly in just 3 minutes for swift mission readiness.
Modular Quick-Swap Payload System
The MMC M12 drone features a detachable payload design, enabling rapid swaps for single, dual, or triple-sensor pods to meet diverse mission needs.
Specs of M12
| Type | Hybrid-wing VTOL |
| Material | Carbon fiber + glass fiber |
| Case Dimensions | 3380×1000×1070 mm (with universal wheels) |
| Unfolded Dimensions (with blades) | Wingspan 6660 mm, Length 3856 mm, Height 1260 mm |
| Body Weight | 100.5 kg (excluding battery and payload) |
| Empty Weight | 137 kg (with battery and 12L fuel, no payload) |
| Full Fuel Weight | 162 kg (with battery, full fuel, no payload) |
| Max Takeoff Weight | 200 kg |
| Max Payload | 55 kg (with 23L fuel) |
| Endurance | 420 min (no payload) |
| 380 min (10 kg payload) | |
| 320 min (25 kg payload) | |
| 240 min (55 kg payload) | |
| Max Wind Resistance | Level 7 (fixed-wing mode) |
| Max Takeoff Altitude | 5000 m |
| Cruise Speed | 35 m/s |
| Max Flight Speed | 42 m/s |
| Max Ascent Speed | 5 m/s |
| Max Descent Speed | 3 m/s |
| Image Transmission Frequency | 1.4 GHz–1.7 GHz |
| Image Transmission Encryption | AES128 |
| Image Transmission Range | 80 km |
| Battery | 6000 mAh × 8 |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%–90% (non-condensing) |
| Protection Rating | IP54 (light rain resistant) |
| Electromagnetic Interference | 100 A/m (power frequency magnetic field) |
Application
Power inspection
Smart city
Ecological protection
Emergency&Firefighting
Smart Industria
