GDU
MMC M11 Heavy Lift VTOL
Griflion-M11
The Griflion M11, an advanced VTOL drone, is meticulously engineered with superior craftsmanship to ensure reliable performance in mission-critical operations.
Heavy-Duty Power Inspection
The Griflion M11 excels in large-scale inspections, such as power line patrols, delivering reliable performance for critical infrastructure monitoring.
Learn More >>

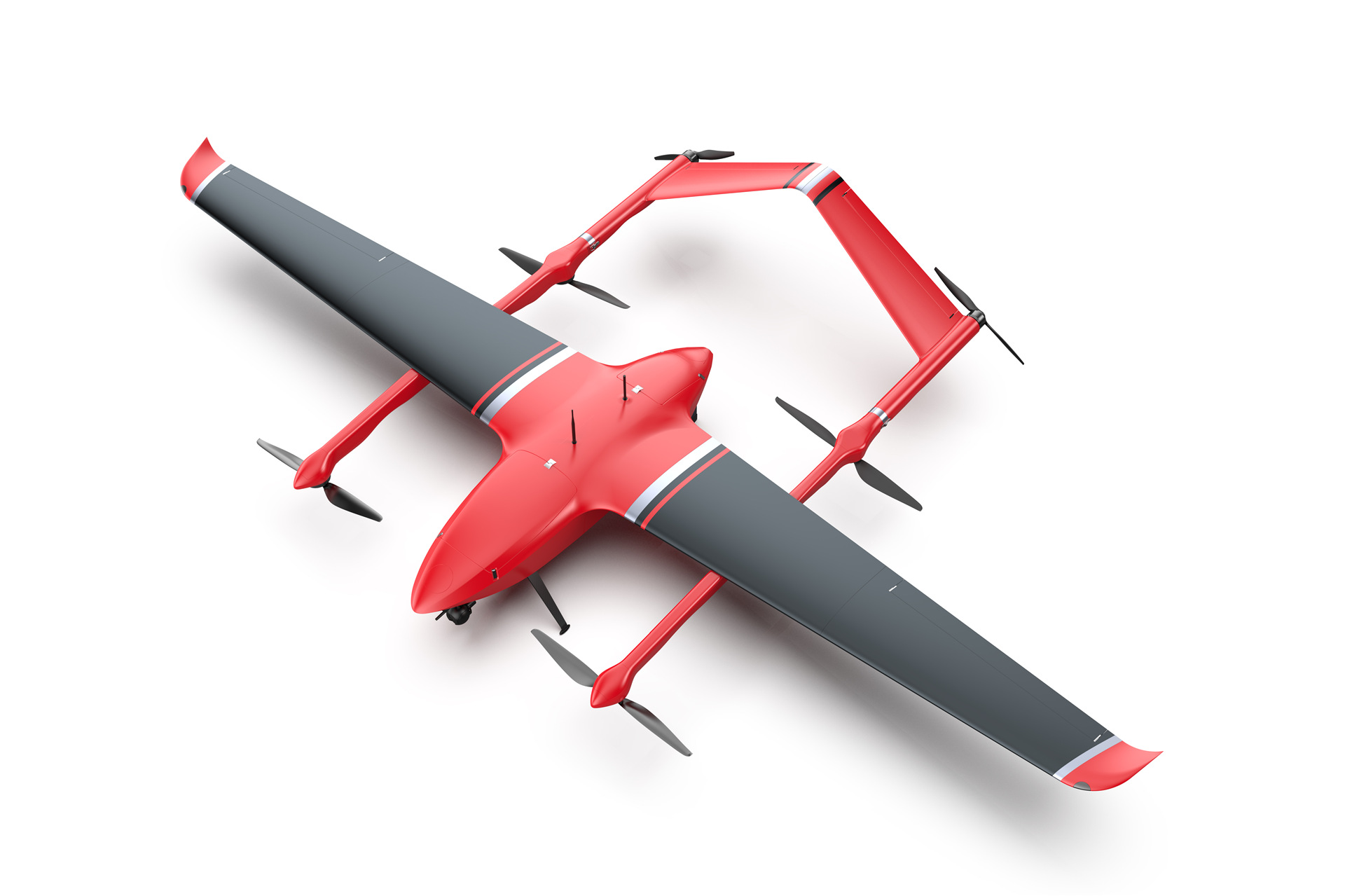

Rapid Tool-Free Deployment
The Griflion M11 features a quick-release plug-and-play design with industrial-grade components, enabling single-operator assembly in just 3 minutes.
Why Choose the Griflion-M11 Series?
Heavy Payload Capacity
15kg load for diverse mission requirements
Extended Endurance
150 minutes for long-range operations
Rapid Deployment
Tool-free assembly in under 3 minutes
Robust Reliability
Twin-tail boom design, 80km secure datalink, IP54 protection
Twin-Tail Boom Stability
The Griflion M11 features a twin-tail boom platform, ensuring superior flight stability while supporting heavy payloads for demanding missions.
Versatile Camera Rotation System
The Griflion M11 features a detachable, quick-swap payload design with a rotating camera system, supporting single, dual, or triple-sensor pods for diverse mission needs.

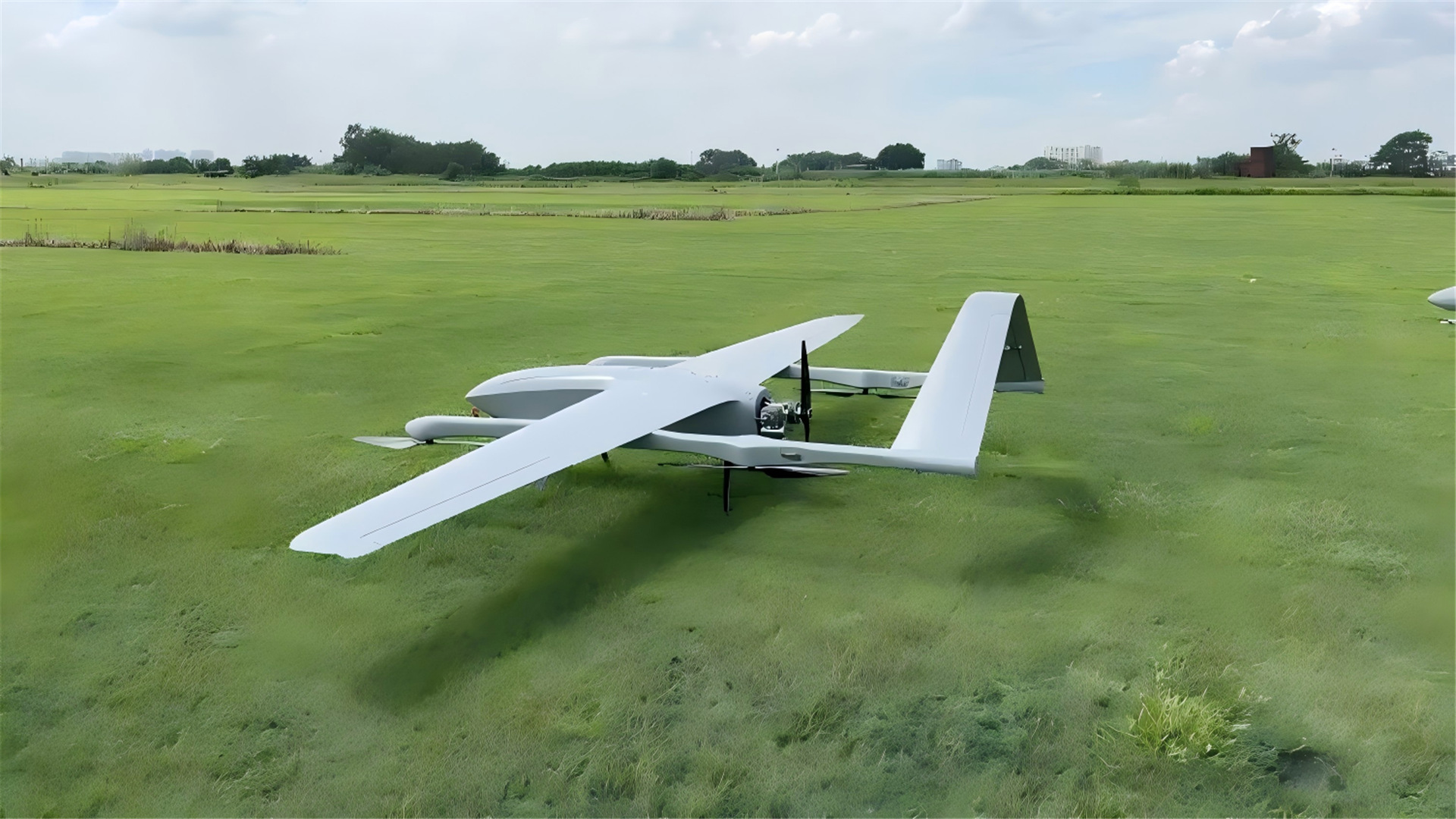

Fully Autonomous and Highly Maneuverable Flight
The Griflion M11 offers fully autonomous VTOL flight with exceptional terrain adaptability and superior maneuverability, ensuring reliable performance in diverse environments.
Airborne Relay for Disaster Recovery
The Griflion M11 restores critical connectivity through airborne relays, ensuring rapid communication recovery in disaster-stricken areas.
Efficient Material Transport
The Griflion M11 excels in material transport, delivering critical supplies reliably across diverse terrains for mission-critical operations.
Product Specifications
| Material | Composite materials |
| Case Dimensions: | Case 1: 1840×1010×740 mm Case 2: 1840×470×1110 mm |
| Max Dimensions (with blades): | Wingspan 4962 mm, Length 2608 mm, Height 952 mm |
| Body Weight: | 29.5 kg (excluding battery and payload) |
| Empty Weight: | 50 kg |
| Max Payload: 15 kg | 15 kg |
| Endurance: | |
| No payload: | ≥240 minutes |
| 5kg payload: | ≥150 minutes |
| Max Wind Resistance: | Level 7 (fixed-wing mode) |
| Image Transmission Frequency: | 1.4 GHz & 450 MHz |
| Image Transmission Range: 80 km | 80 km |
| Operating Temperature: | -20°C to 60°C |
| Operating Humidity: | 10% to 90% (non-condensing) |
| Protection Rating: | IP54 |
| Max Altitude: | 4500 m |
| Cruise Speed: | 25 m/s |
| Battery: | 30,000 mAh × 8, ≥100 cycles, supports dual-battery charging with overcharge/over-discharge protection |
| Video Transmission Resolution: | 1080P@30fps |
| Navigation: | BeiDou positioning |
Application
Power inspection
Smart city
Ecological protection
Emergency&Firefighting
Smart Industria
