KEEL PLUS 30kg Class Long Endurance Pure Electric Quadcopter

Product Detail

Product Tags

KEEL PLUS: The 30kg Drone Powerhouse, Engineered for Mission Excellence

Max Payload. Max Flight Time. Unmatched Modularity.

KEEL PLUS: The 30kg Drone Powerhouse, Engineered for Mission Excellence

Max Payload. Max Flight Time. Unmatched Modularity.

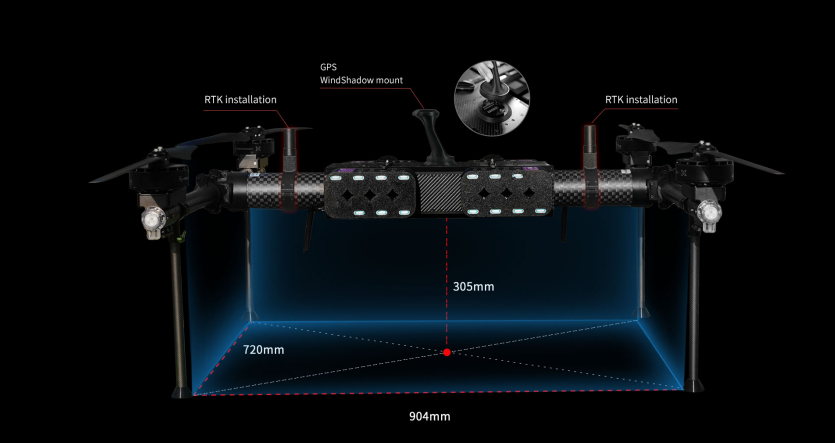

Multi-payload Compatible Platform

KEEL Plus has three expansion slots on the top, which are often used forGPS or dual RTK installation.The space below is flat and open, with 1 expansion portsThere is a flight control data transmission interface at the bottomOne drone can carry multiple devices and has ample load space.

Learn More >>

Multi-payload Compatible Platform

KEEL Plus has three expansion slots on the top, which are often used forGPS or dual RTK installation.The space below is flat and open, with 1 expansion portsThere is a flight control data transmission interface at the bottomOne drone can carry multiple devices and has ample load space.

Learn More >>

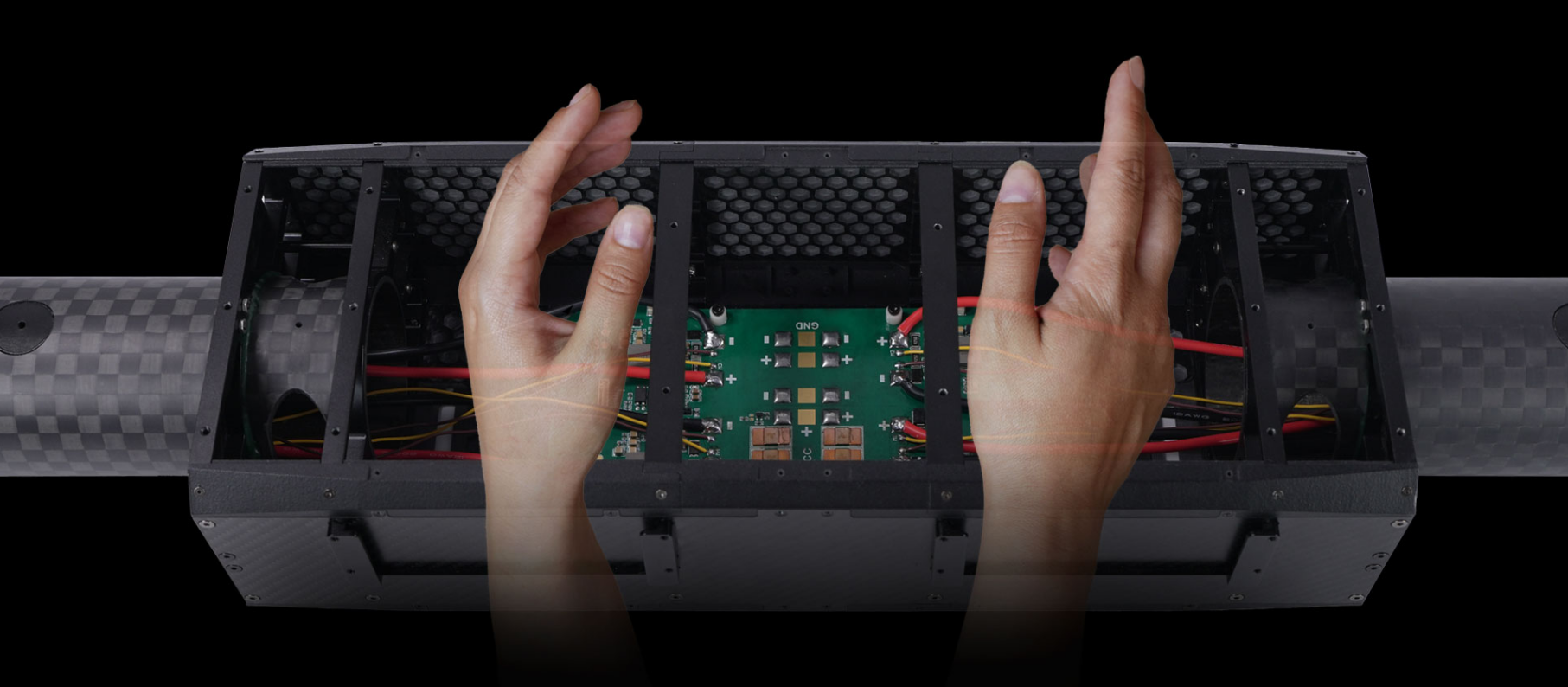

Plenty Of Cabin Space

The cabin is spacious at 440x110x150mm, which is large enough to accommodatean adult's hands for assembly and welding operations,greatly improving the convenience and efficiency of maintenance and repair.

Plenty Of Cabin Space

The cabin is spacious at 440x110x150mm, which is large enough to accommodatean adult's hands for assembly and welding operations,greatly improving the convenience and efficiency of maintenance and repair.

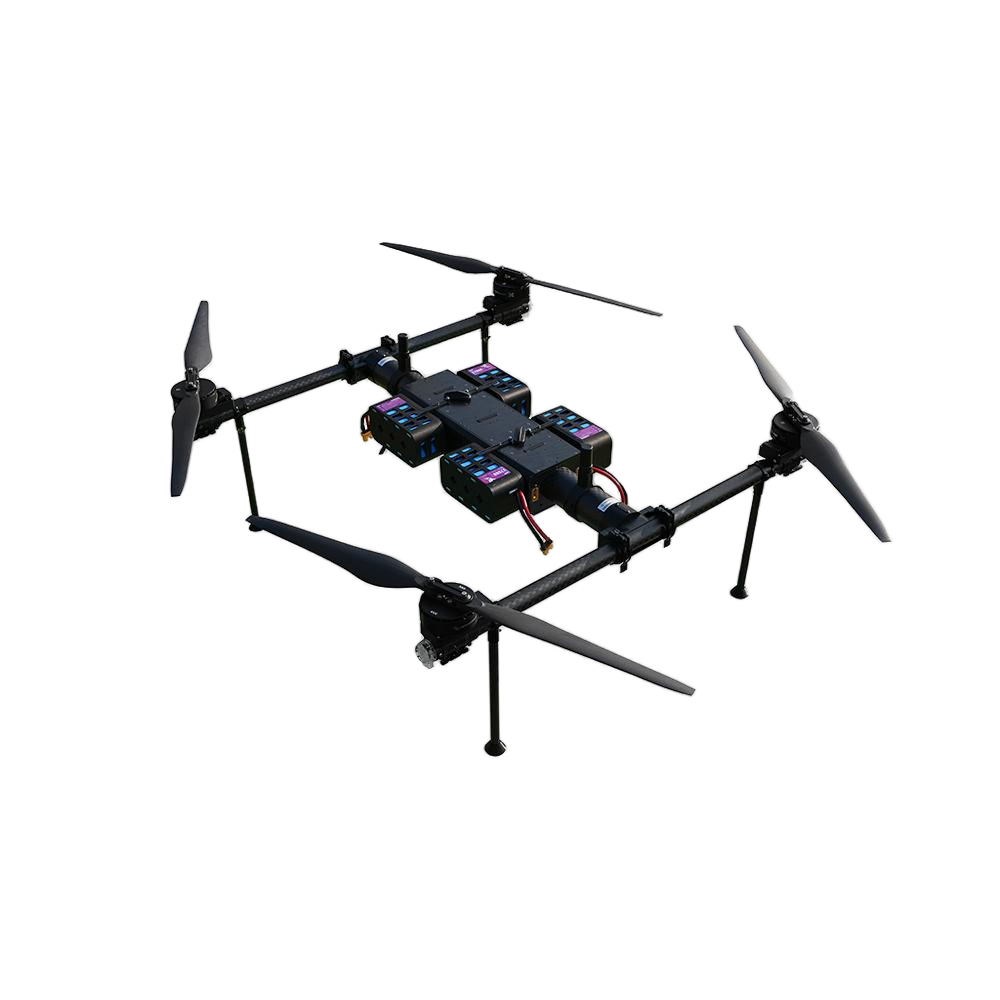

Why Choose KEEL PLUS ?

Superior Payload and Endurance

Choose KEEL PLUS for its robust 30kg maximum payload capacity and exceptional 30-minute flight time at full load, delivering reliable, long-duration performance for demanding missions.

Innovative and Flexible Modular Design

Opt for KEEL PLUS for its innovative quick-release structure and interchangeable arms, which enable rapid assembly, disassembly, and flexible configuration, significantly enhancing operational convenience and deployment speed.

Advanced Dual-Power and Battery System

Select KEEL PLUS for its advanced dual-power system compatibility and redundant battery design with instant-swap capability, ensuring flight safety, extended endurance, and seamless, uninterrupted operations.

Highly Integrated and Adaptable Platform

Invest in KEEL PLUS for its highly integrated power system, spacious cabin for easy maintenance, and multi-payload compatible platform with ample expansion ports, offering outstanding adaptability, stability, and ease of integration for diverse professional applications.

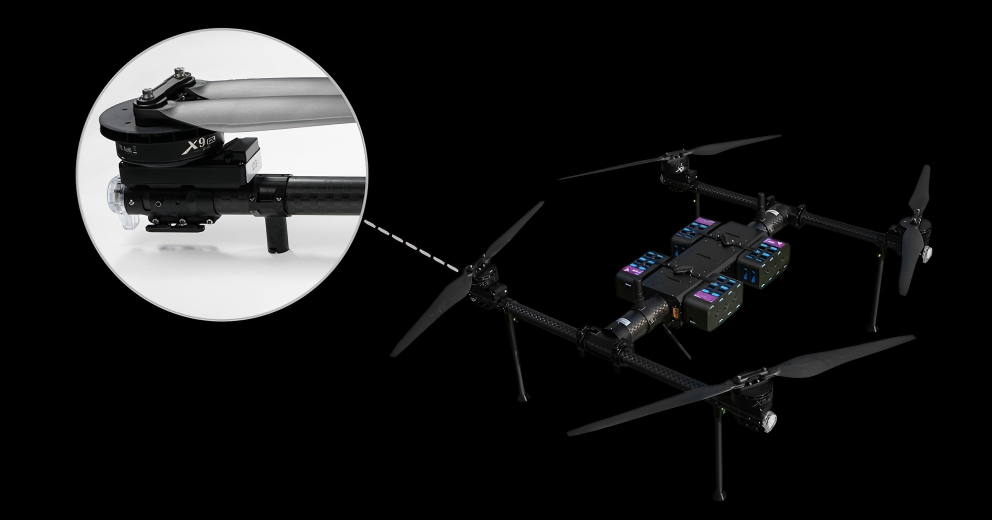

Dual Power System, Exclusive Compatibility(1)

High-Load Capacity & Robust Performance Specifications

The Keel Pro Drone boasts key specs including a 12kg (±0.1kg) empty weight (battery-excluded), 56kg maximum takeoff weight, 18m/s max horizontal speed, 18m/s wind resistance, 100°/s max rotational angular velocity, and 25° max pitch angle, paired with a durable hardware design to support its heavy-load and stable operational capabilities.

Unrivaled Adaptability: One Platform, Limitless Configurations

The innovative quick-release structure, interchangeable arms, and modular design enable rapid assembly, flexible mission reconfiguration, and seamless payload integration, allowing you to adapt the same platform for diverse industry applications without compromising performance.

Engineered for Mission Confidence: Uninterrupted Endurance and Robust Stability

With a redundant battery system supporting hot-swapping, active cooling, and a durable H-frame carbon fiber structure designed to handle 18m/s winds, KEEL Plus ensures reliable, long-duration flight in demanding environments.

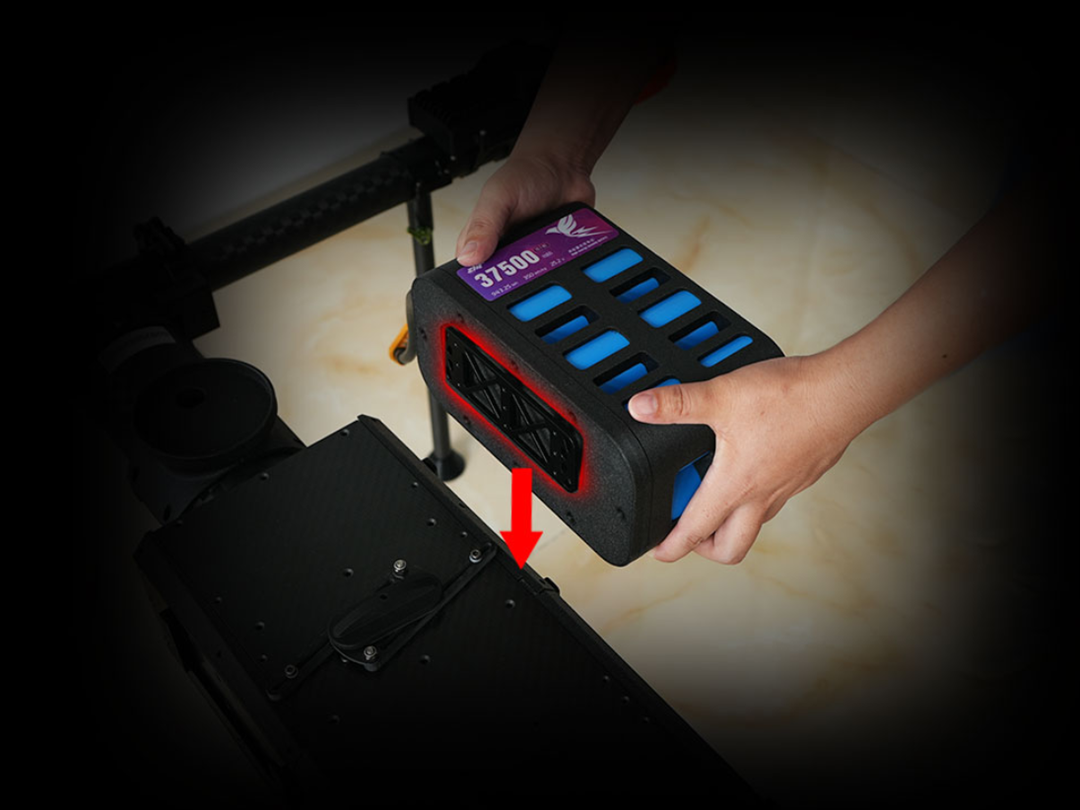

Mounted Structure

A stable connection is achieved through precise aviation aluminum mounting parts, allowing batteries to be quickly replaced for uninterrupted operation.

Instant Battery Swap For Seamless Flight

The battery is quick-released and can be locked or released by rotating two switches.

Specs of KEEL PLUS

「KEEL PLUS 」30 kg Class Drone PNP Parameters
		KEEL PLUS X9 Plus Version
Flight platform
Basic parameters	Deployed Dimensions （Arms and landing gears installation, props unfolded）	1900 mm × 1877 mm × 550 mm
	Disassembled Dimensions （Arms installation, landing gears & props removed）	1065 mm ×1092 mm × 245 mm
	Packed Dimensions	1155 mm × 545 mm × 330 mm
	Max. Symmetric Wheelbase	1379 mm
	Material	Carbon fiber composite and Aircraft Aluminum
	Deployment Way	Modular quick disassembly, tool-free
	Weight（excl. battery）	12 kg
	*Weight (incl. battery 2 pcs）**	≈ 25 kg
	Max. Takeoff Weight	56 kg
	Max. Loading Capacity	30 kg
Flight parameters	The Farthest Flight distance (Flying at a constant speed of 12 m/s when without payload)	57.6 km
	Max. Flight Time (Flying at a constant speed of 10 m/s when without payload)	80 min
	Endurance *(Cruising at 30 m AGL with constant speed of 10 m/s)**	≤60 min @ 10 kg payload ≤40 min @ 20 kg payload ≤30 min @ 30 kg payload
	Max. Ascent Speed	5 m/s
	Max. Descent Speed	3 m/s
	Max. Horizontal Speed	18 m/s（*No wind, without payload）
	Max. Angular Velocity	100°/s
	Max. Pitch Angle	25°
	Hovering Accuracy *( RTK not used)**	vertical ±0.2 m；horizontal ±0.1 m
	Max. Flight Altitude	Standard propeller ≤3800 m；Plateau propeller ≤7000 m (* Limited by the plateau environment, the maximum payload is reduced to 9 kg at 5000 m)
	Max. Wind Speed Resistance	18 m/s (Wind Force 8)
	Working Environment	﹣20 ℃ ～ +55 ℃
Power system
Moter	Model	X9 Plus
Propeller	Size	3619 Carbon fiber reinforced plastics folding propeller
	Quick Disassembly	Not supported (screws need to be removed)
	Quantity	CCW×2 + CW×2
Electric system
Battery	Battery type	Li-ion
	Capacity	Single：7S 37500 mAh； Total：14S 75000 mAh
	Quantity and Configuration	4 Packs(14S2P)
	Weight *（Single pack,Incl. protective case）**	≈3.22 kg
	Size *（Single pack,Incl. protective case）**	190 mm x 97 mm x 115 mm
	Energy	Single：943.25 Wh； Total：3773 Wh
	Nominal Voltage *（Single pack）**	25.2 V (3.6 V/cell × 7 cells)
	Fully-charged voltage	59.5 V（4.25 V/cell × 14 cells）
	Continuous discharge current and rate *( Single pack)**	111A（3C-4C）
	60s peak discharge rate and current *( Single pack)**	300 A（8C）
	Charging current and rate *( Single pack)**	74A（2C）
Charger	Model	K4
	Charging way	Intelligent balance, support 2 batteries charging at the same time
	Max. Charging power	AC 400 W，DC 600 W x2
	Parallel charging power/current	800 W / 35 A
	Input voltage	AC 100-240 V，DC 10-34 V
	Output voltage	DC 1-34 V
	Charging duration	About 2 - 3 hours （At a current of 20A, the two batteries are charged simultaneously and the cells are balanced.）
