K03 Autonomous Docking Station
K03----Lightweight Auto-Charging Docking Station
A compact, easy-to-deploy drone docking station with automatic charging, real-time monitoring, and remote management
Low Power Auto-Charging Docking Station
The K03 uses ultra-low standby power (<10 W), supports solar power for off-grid use, and maintains reliable MESH connectivity even without public networks.
Learn More >>
Industrial Protection for All-Weather Reliability
The K03 operates safely year-round with IP55-rated wind and rain protection and a -20℃ to 50℃ operating range, ensuring stable performance in harsh outdoor environments.
Why Choose K03 ?
Compact and Lightweight Design
Weighing only 50 kg and measuring just 650 × 555 × 370 mm, the K03 is easy to deploy on rooftops, towers, or remote sites — ideal for fast setup and mobile operations.
Fast Charging, Continuous Missions
With auto-charging from 10% to 90% in just 35 minutes, the K03 keeps drones flight-ready for 24/7 operations, reducing downtime and improving efficiency.
All-Weather, Industrial-Grade Protection
Built with IP55 dust and water resistance, –20°C to 50°C temperature tolerance, and anti-freeze & lightning protection, K03 ensures reliable operation in any environment.
Smart Connectivity and Remote Management
Featuring Wi-Fi 6 (200 Mbps), RTK precision landing, and optional MESH networking, K03 supports remote control, real-time monitoring, and seamless cloud integration for autonomous drone management.

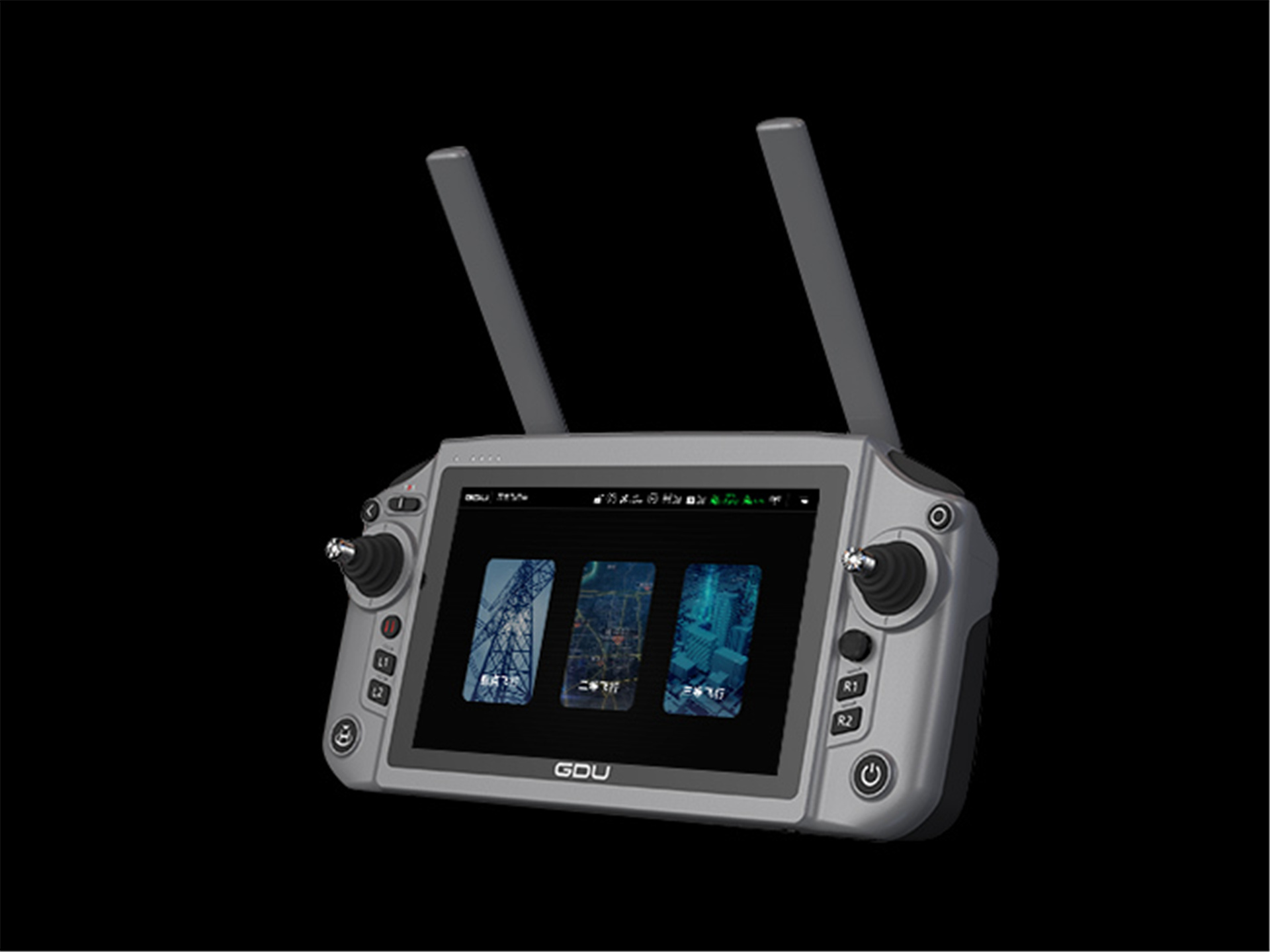

Manual Control Mode
Manual model-Operate manually with remote control-Integrated remote control-5.5-inch large display Ground station, image transmision.
Open Platform Empower Diverse Industries
By enabling customization in fields from agriculture to mapping, this platform unlocks new possibilities for diverse enterprises.
Fast Charging, Instant Response
Maximize productivity by minimizing downtime and response time.
Open Platform for Industy Integration

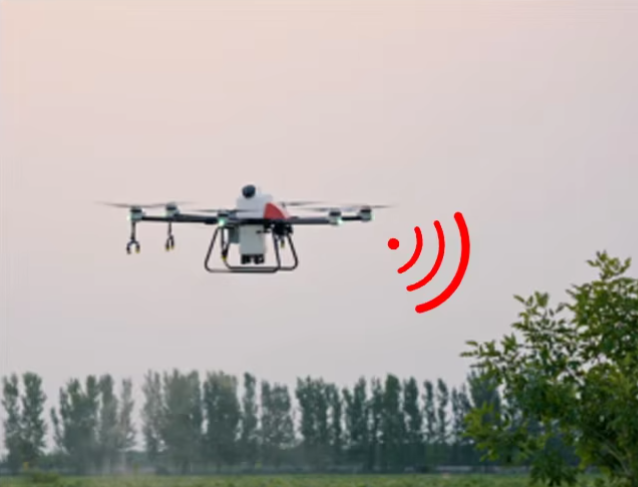

The obstacle avoidance radar system can sense obstacles and the surrounding environment in all environments without interference from dust light. Automatic obstacle avoidance and adjustment function to ensure safety during operation.
Relay Flight for Extended Range and Uninterrupted Opeartions
The K03 has a deep standby function, and the standby power consumption is reduced to 10W, which can be used for a long time in the solar-powered state.
Specs of K03
| Specification | Details |
| Dimensions (Closed) | 650mm x 550mm x 370mm |
| Dimensions (Opened) | 1380mm x 550mm x 370mm (excluding height of the meteorological station) |
| Weight | 45kg |
| Fill-in Light | Yes |
| Power | 100 ~ 240VAC, 50/60HZ |
| Power Consumption | Max ≤1000W |
| Deployment Place | Ground, roof, standing tower |
| Emergency Battery | ≥5H |
| Charging Time | <35min (10%-90%) |

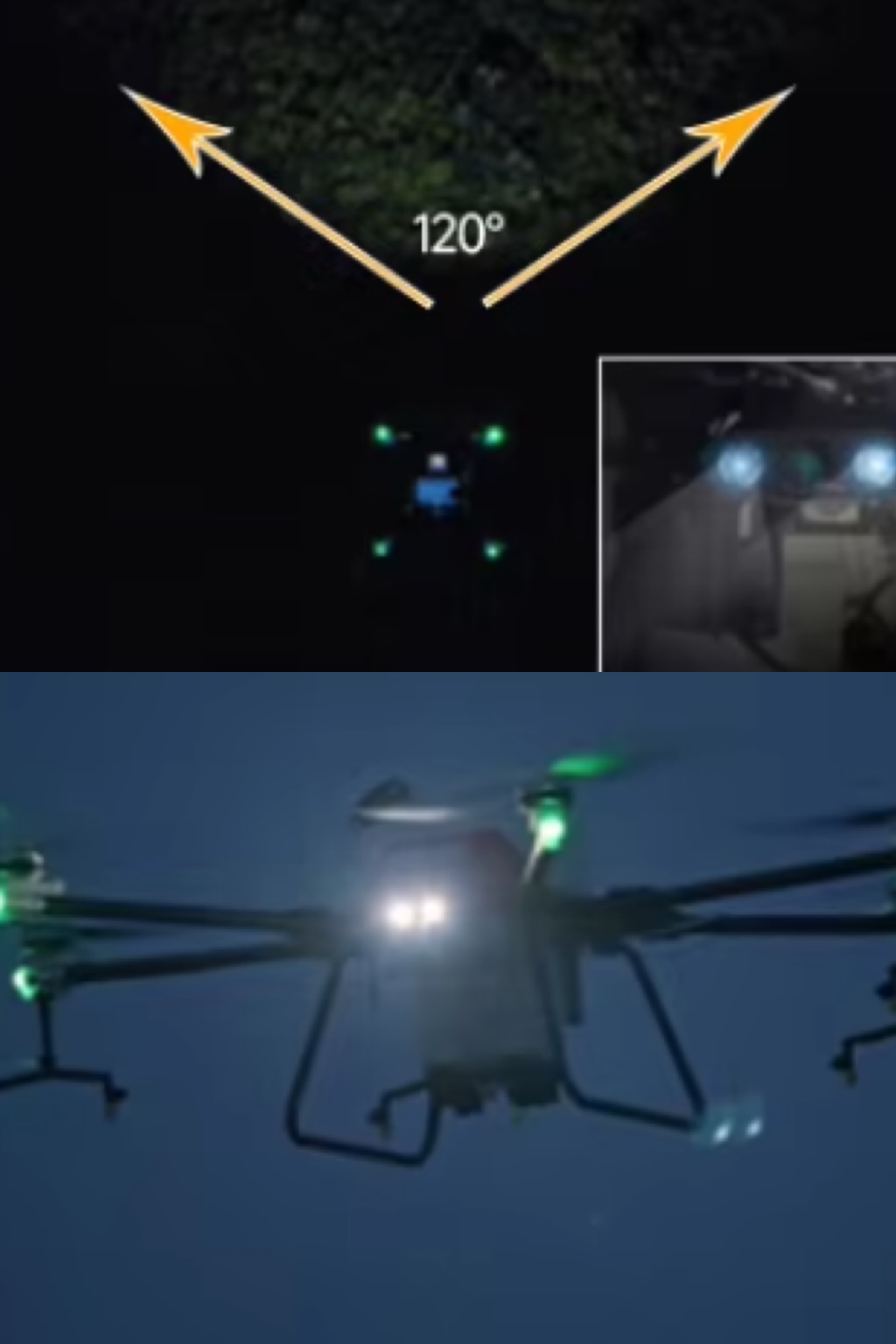

| Night Precise Landing | Yes |
| Leapfrog Inspection | Yes |
| Data Transmission Speed (UAV to Dock) | ≤200Mbps |
| RTK Base Station | Yes |
| Max Inspection Range | 8000m |
| Wind-resistance Level | Inspection: 12m/s, Precise landing: 8m/s |
| Edge Computing Module | Optional |
| Mesh Module | Optional |
| Operating Temperature Range | -20°C ~ 50°C |
| Max Operating Altitude | 5000m |
| Relative Humidity of External Environment | <95% |
| Temperature Control | TEC AC |
| Antifreezing | Cabin door heating supported |
| Dustproof and Waterproof Class | IP55 |
| Lightning Protection | Yes |
| Salt Spray Prevention | Yes |
| UAV In-place Detection | Yes |
| Cabin Exterior Check-up | Temperature, humidity, wind speed, rainfall, light |
| Cabin Interior Check-up | Temperature, humidity, smoke, vibration, immersion |
| Camera | Inside and outside cameras |
| API | Yes |
| 4G Communication | SIM card optional |
Application
Power inspection
Smart city
Ecological protection
Emergency & firefighting
Smart industrial park
