GDU

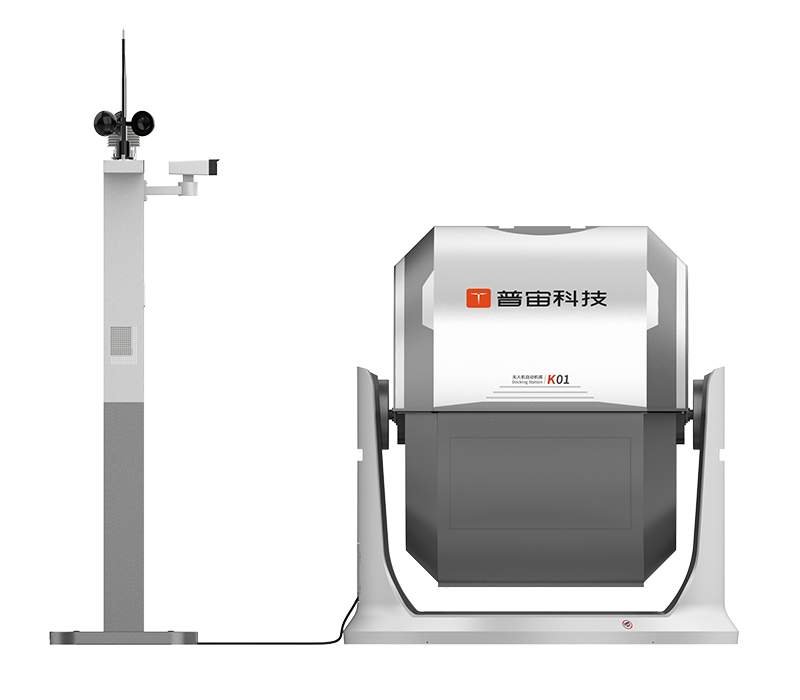

GDU K01 Dock Kit for S400E Series with Battery Swap

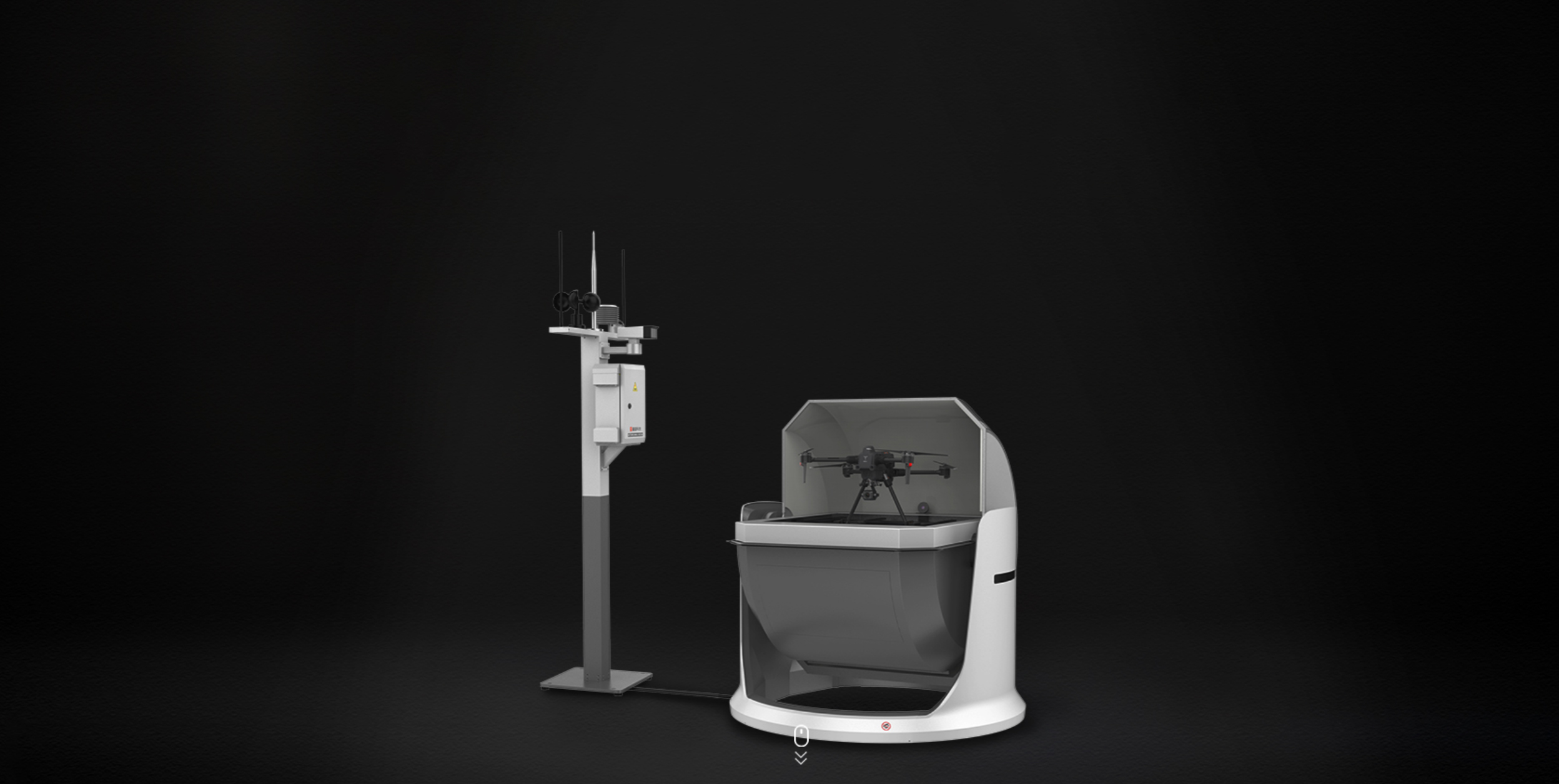

GDU K01 Autonomous Drone Docking Station
Accelerating Aerial Infrastructure with Smart Automation

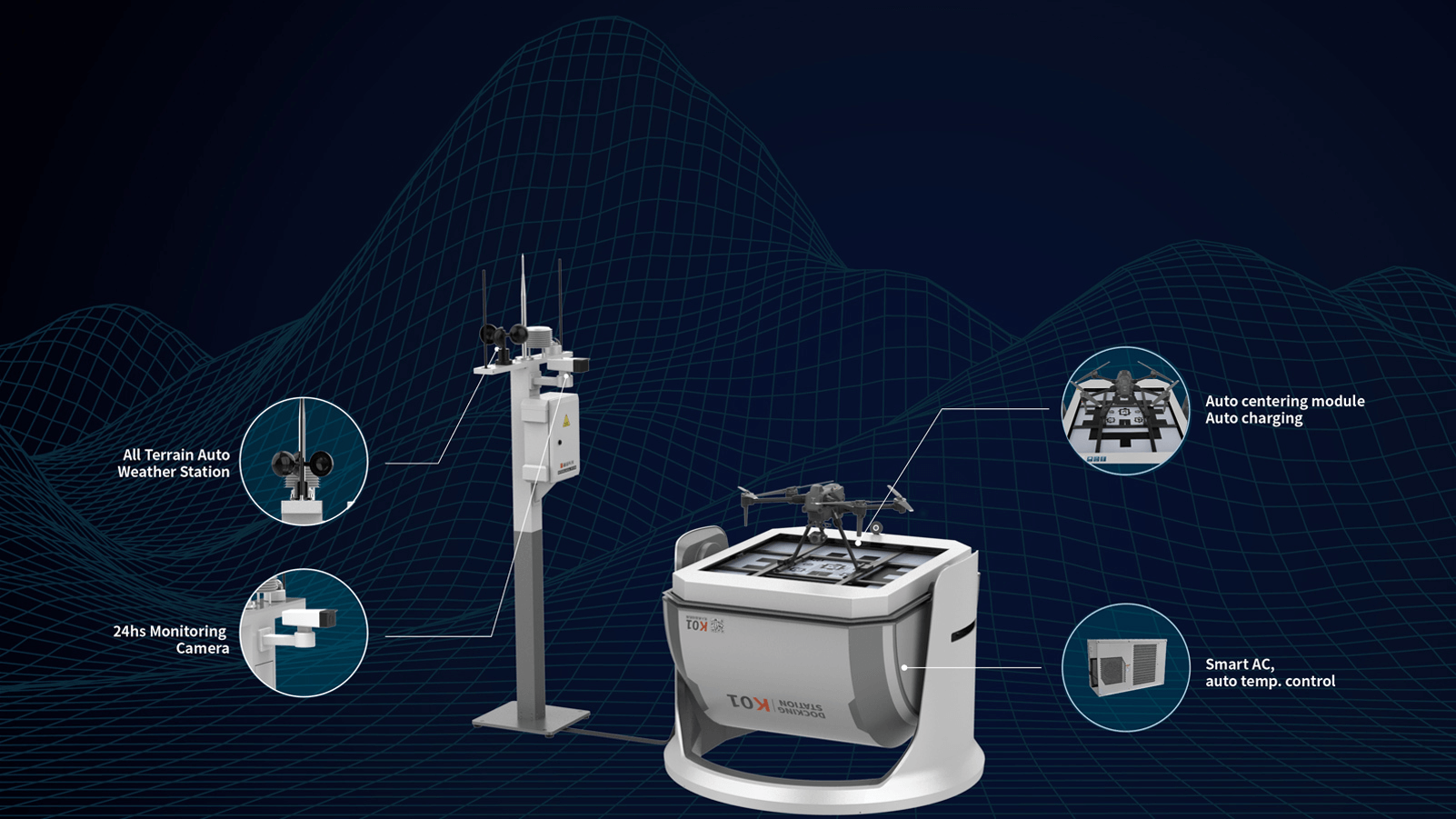

An enterprise-grade autonomous drone-in-a-box system
Designed for continuous, unmanned missions in power inspection, public safety, environmental monitoring, and smart-city management.
Learn More >>
Integrated with the S400E UAV
K01 automates take-off, landing, charging, and data upload, enabling 24/7 remote operations with minimal human intervention..
Why Choose DGU K01?
All-Weather Performance (IP54)
Operates from –35 °C to 50 °C and resists wind up to 15 m/s.

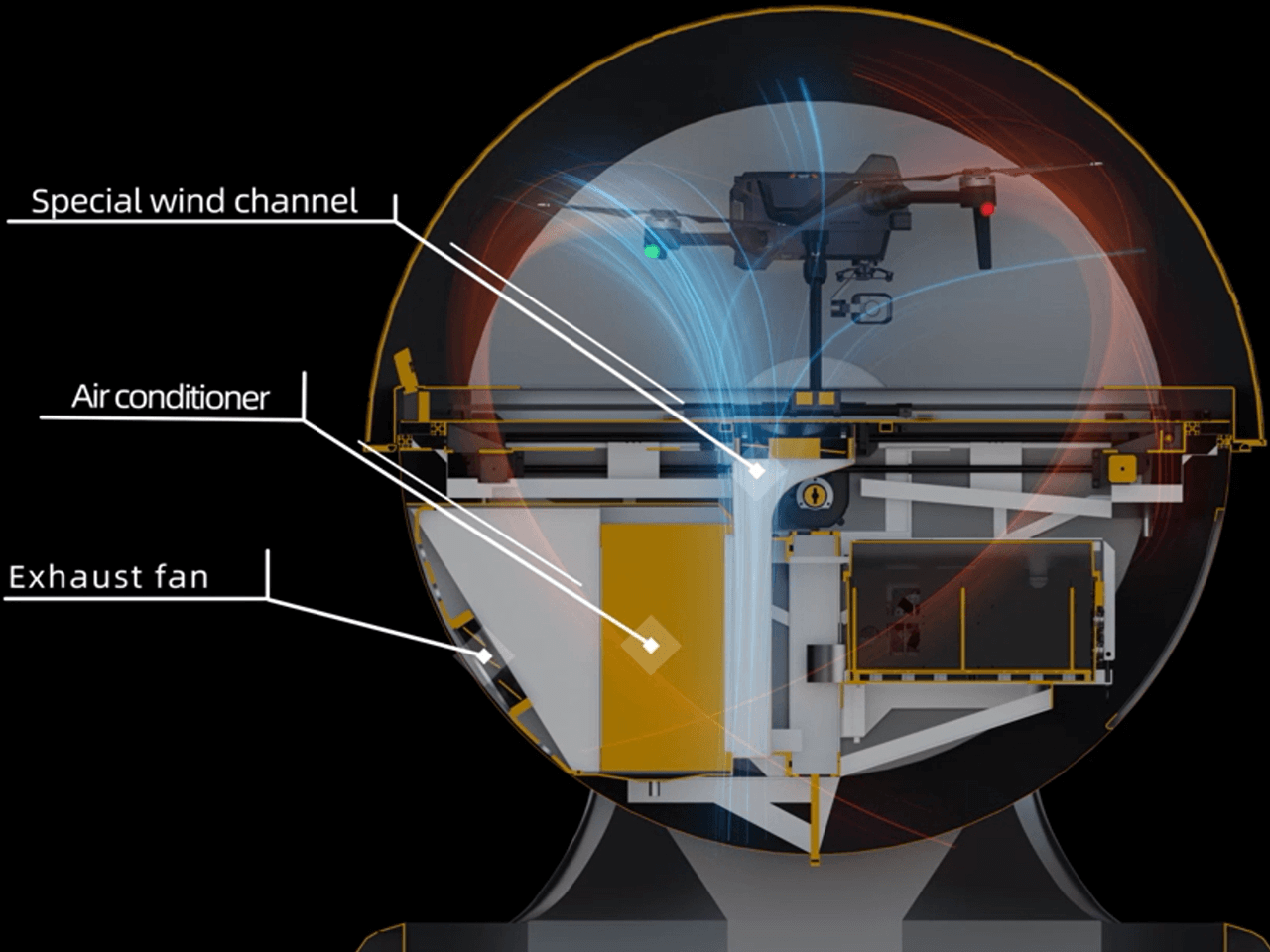

Smart Air-Conditioning & Heating
850 W system maintains optimal cabin temperature for drone health.
Backup Power Protection
UPS ensures 4 hours of autonomous operation during power outages.
Rugged Industrial Design
Compact (1460 × 1460 × 1590 mm), 240 kg construction for flexible deployment in any terrain.

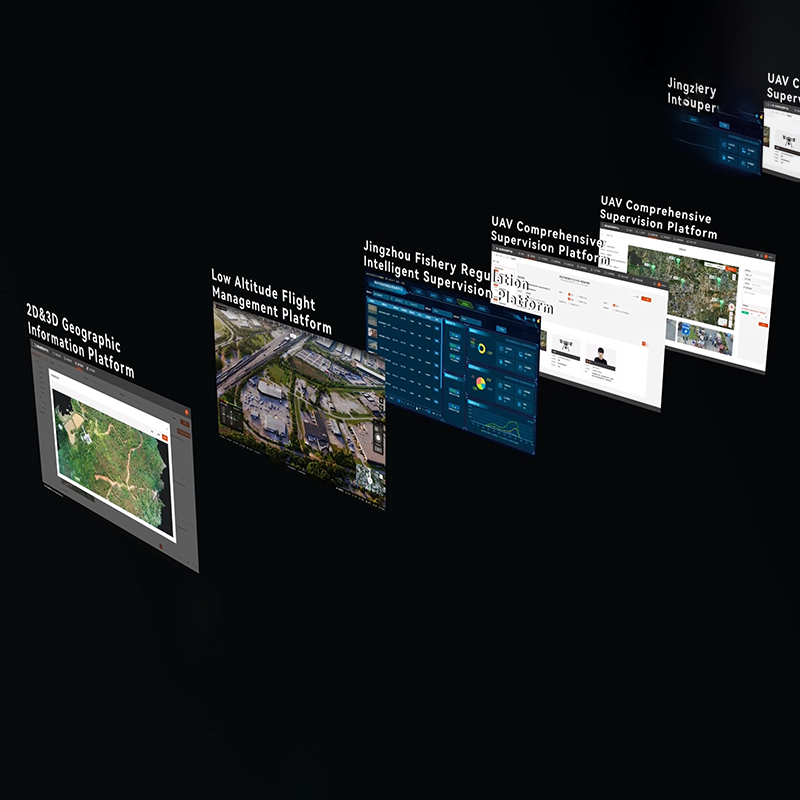

Cloud-Based Control & Multi-Drone Coordination
Through the UVER Smart Command Platform, K01 integrates drones, docking stations, and the command center into one cloud-managed network.
Enterprises can plan missions, monitor live video, and control multiple drones remotely — eliminating the need for on-site operation.
All-Weather Durability with Intelligent Climate Control
K01’s barrel-shaped rolling cover and IP54-rated protection ensure uninterrupted operation in wind, snow, freezing rain, and falling debris.
A built-in smart air-conditioning system maintains a stable cabin temperature between –35°C and 50°C, while the integrated UPS provides up to five hours of backup power, keeping missions active even during outages.
AI-Driven Data Management & Insights
K01 automatically uploads mission data to the cloud for real-time synchronization, storage, and analysis.
Built-in AI algorithms process results and deliver actionable insights, enabling faster, smarter decision-making across enterprise operations.
Full Autonomy, Zero On-Site Labor
K01 enables unattended drone operations — from take-off and landing to charging and data upload — reducing field labor and operational costs while increasing uptime.
Smart Air-Conditioning & Heating
850 W system maintains optimal cabin temperature for drone health.
Specs of K01
| Parameter | Specification |
| Dimensions (Closed) | 1460 × 1460 × 1590 mm |
| Weather Station | 550 × 766 × 2300 mm |
| Weight | ≤ 240 kg |
| Compatible UAV | S400E |
| Landing Positioning | RTK + Vision Redundancy |
| Control Distance | 8 km |
| Operating Temp Range | –35 °C to 50 °C |
| Humidity Range | ≤ 95 % |
| Max Altitude | 5000 m |
| Protection Level | IP54 |
| Power Consumption | 1700 W (max) |
| Weather Monitoring | Wind speed, rainfall, temperature, humidity, air pressure |
| Control Interface | Ethernet (10/100/1000 Mbps), WEB SDK available |
Application
Power inspection
Smart city
Ecological protection
Emergency&Firefighting
Smart Industria
