GDU

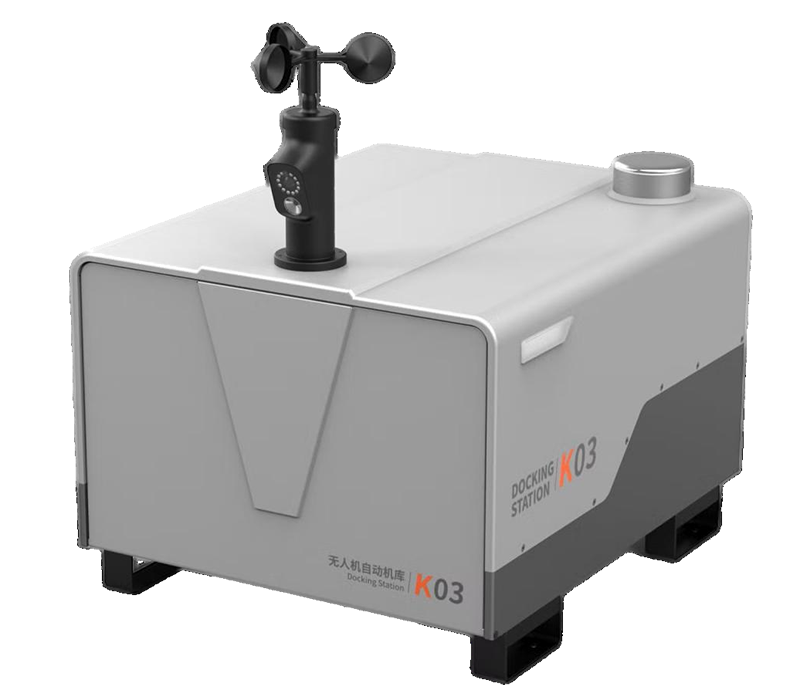

K03 Autonomous Docking Station
K03
Light-weight Auto Charging Docking Station
Low Power Auto-Charging Docking Station
Enabling Fully Autonomous Mission Cycles.
Learn More >>
Industrial Protection for All-Weather Reliability
The K03 operates safely year-round with IP55-rated wind and rain protection and a -20℃ to 50℃ operating range, ensuring stable performance in harsh outdoor environments.
Why Choose K03 ?
Maximized Operational Efficiency
The autonomous docking system enables continuous drone operations with fast charging, significantly extending flight time and expanding coverage for large-scale inspections.
Reliable Connectivity in Remote Areas
With self-organizing mesh network technology, the K03 ensures stable real-time data transmission and control even in off-grid environments.
Intelligent Mission Planning
The built-in weather monitoring system provides real-time environmental data to optimize flight routes and enhance operational safety.
Sustainable Low-Energy Design

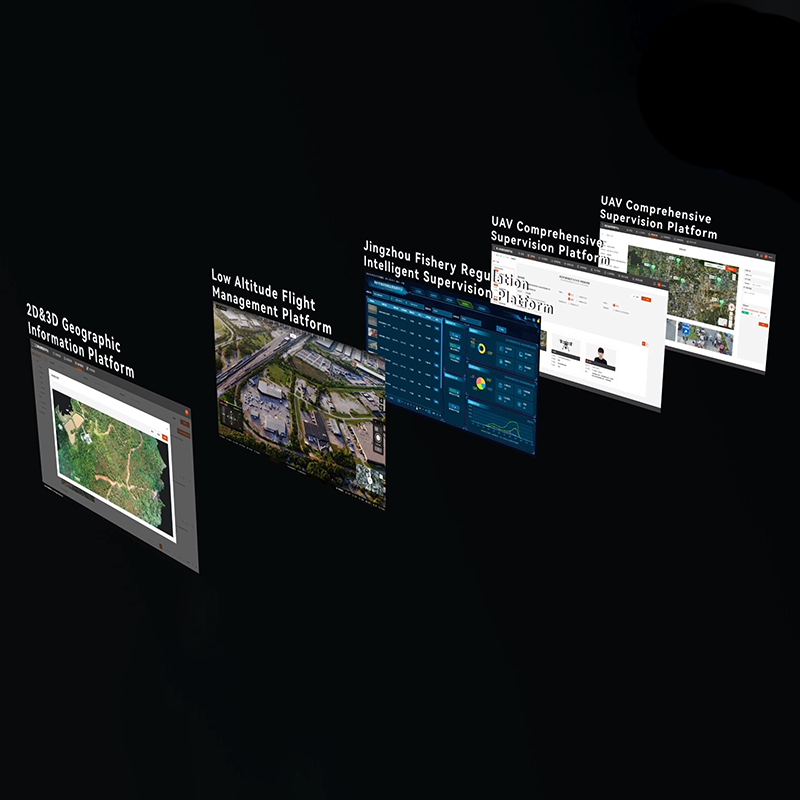

Open Platform for Industry Integration
It serves as a foundational hub that connects various industrial applications, fostering innovation and operational synergy.
Open Platform Empower Diverse Industries
By enabling customization in fields from agriculture to mapping, this platform unlocks new possibilities for diverse enterprises.
Fast Charging, Instant Response
Maximize productivity by minimizing downtime and response time.
Open Platform for Industy Integration
It supports relay operation between UAV A to Dock B, which effectively increases the inspection operation time and expands the operation scope; it uses self-organizing network relay communication to ensure uninterrupted connection during long-distance inspections in a network-free environment; Dock has a built-in weather information system to obtain weather conditions in real time and carry out mission planning.

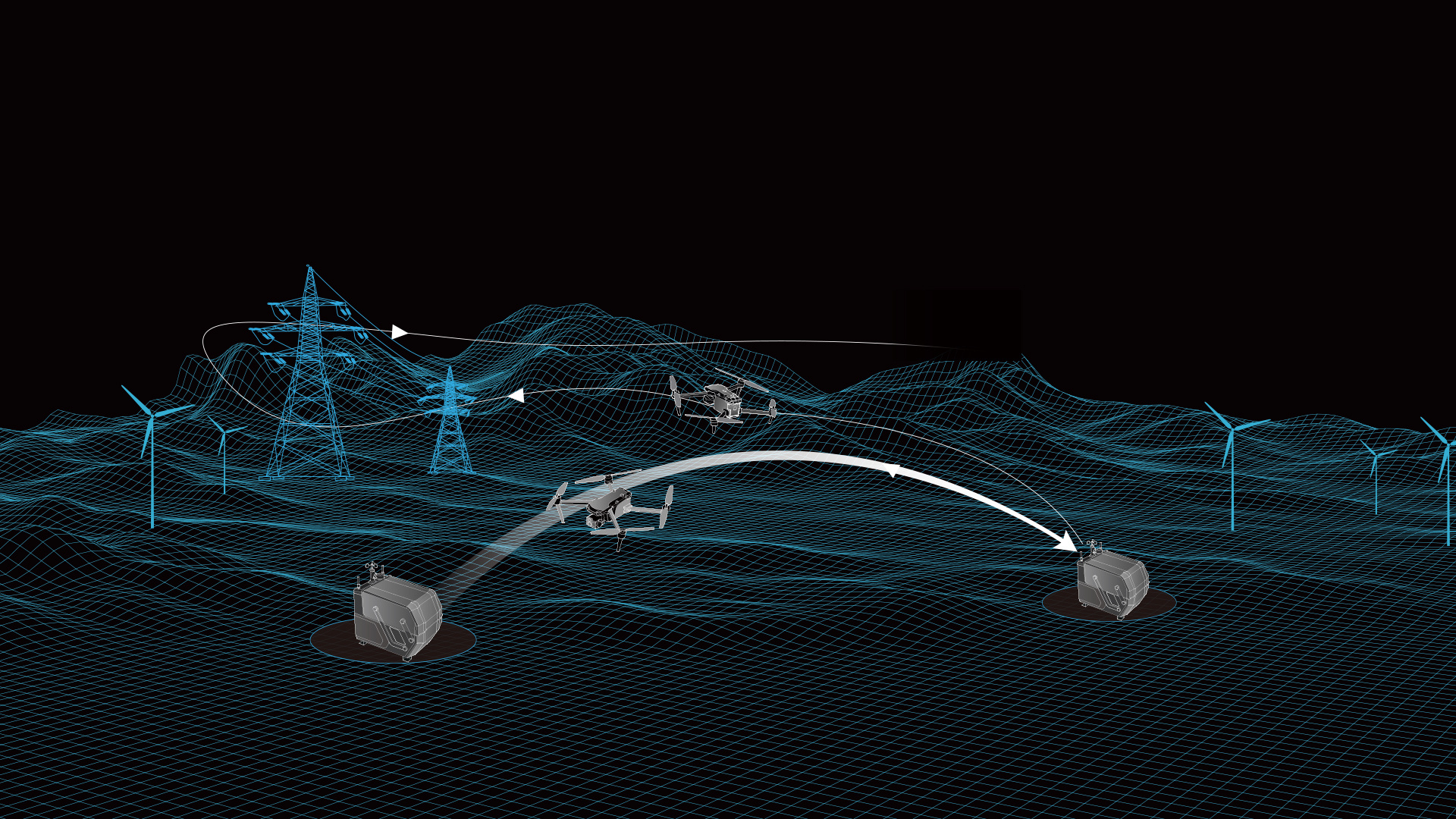

Relay Flight for Extended Range and Uninterrupted Opeartions
The K03 has a deep standby function, and the standby power consumption is reduced to 10W, which can be used for a long time in the solar-powered state.
Specs of K03
| Specification | Details |
| Dimensions (Closed) | 650 mm x 555 mm x 370 mm |
| Dimensions(Opened) | 1380 mm x 555 mm x 370 mm |
| Weight | 2400 mm x 2460 mm x 630 mm |
| Net Weight | ≤50 kg |
| Fill-in light | Yes |
| Power | 100 ~ 240 VAC, 50/60 Hz |
| Power consumption | Max≤1000 W |
| Deployment play | Ground, roof, standing tower |
| Emergency battery | ≥5 H |
| Charging time | ≤35 min(10%-90%) |
| Night precise landing | Yes |
| Leapfrog inspection | Yes |
| Data transmission speed(UAV to Dock) | ≤200 Mbps |
| RTK base station | Yes |
| Max inspection range | 8000 m |
| Wind-resistance level | Inspection: 12 m/s
Precise landing: 8m/s |
| Edge computing module | Optional |
| Mesh module | Optional |
| Operating temperature range | -20℃ ~ 50℃ |
| Max operating altitude | 5000 m |
| Relative humidity of the external environment | ≤95% |
| Temperature control | TEC AC |
| Antifreezing | Cabin door heating supported |
| Dustproof and waterproof class | IP55 |
| Lightning protection | Yes |
| Salt spray prevention | Yes |
| UAV in-place detection | Yes |
| Cabin exterior check-up | Temperature, humidity, wind speed, rainfall, light |
| Cabin interior check-up | Temperature, humidity, smoke, vibration, immersion |
| Camera | Inside and outside cameras |
| API | Yes |
| 4G communication | SIM card optional |
Application
Power inspection
Smart city
Ecological protection
Emergency & firefighting
Smart industrial park
