GDU
GUD K02 Dock Kit for S200 Series Dual-Camera Drone
GDU K01 Autonomous Drone Docking
Accelerating Aerial Infrastructure with Smart Automation
An enterprise-grade autonomous drone-in-a-box system.
Featuring automated charging, centralized data management, and all-weather reliability for scalable deployments.
Learn More >>
Integrated with the S400E UAV
K01 automates take-off, landing, charging, and data upload, enabling 24/7 remote operations with minimal human intervention.

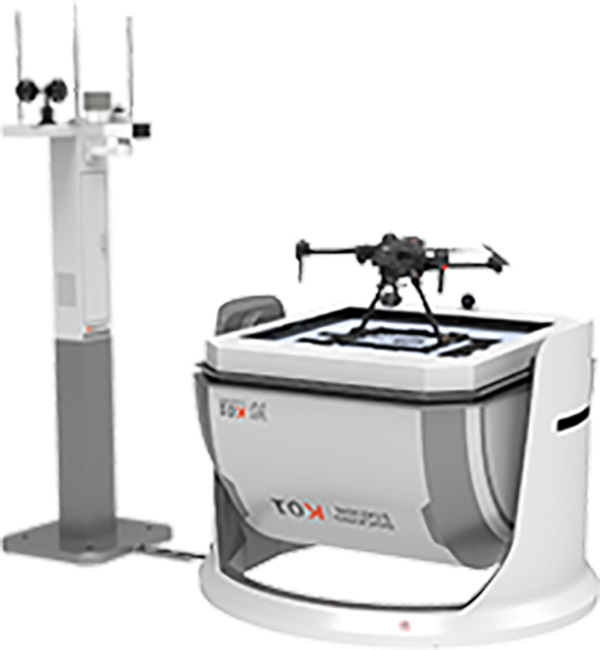

Why Choose K01 ?
Fully Autonomous Operation
Self-docking and auto-charging enable 24/7 continuous missions without human intervention.
Military-Grade Durability
IP54-rated housing withstands harsh environments (-20°C to 50°C) for reliable field deployment.
Intelligent Fleet Management
Supports multi-drone coordination with real-time task allocation and priority scheduling.
Future-Proof Scalability
Open Platform for Industry Integration
It serves as a foundational hub that connects various industrial applications, fostering innovation and operational synergy.
Open Platform Empower Diverse Industries
By enabling customization in fields from agriculture to mapping, this platform unlocks new possibilities for diverse enterprises.
Fast Charging, Instant Response
Maximize productivity by minimizing downtime and response time.

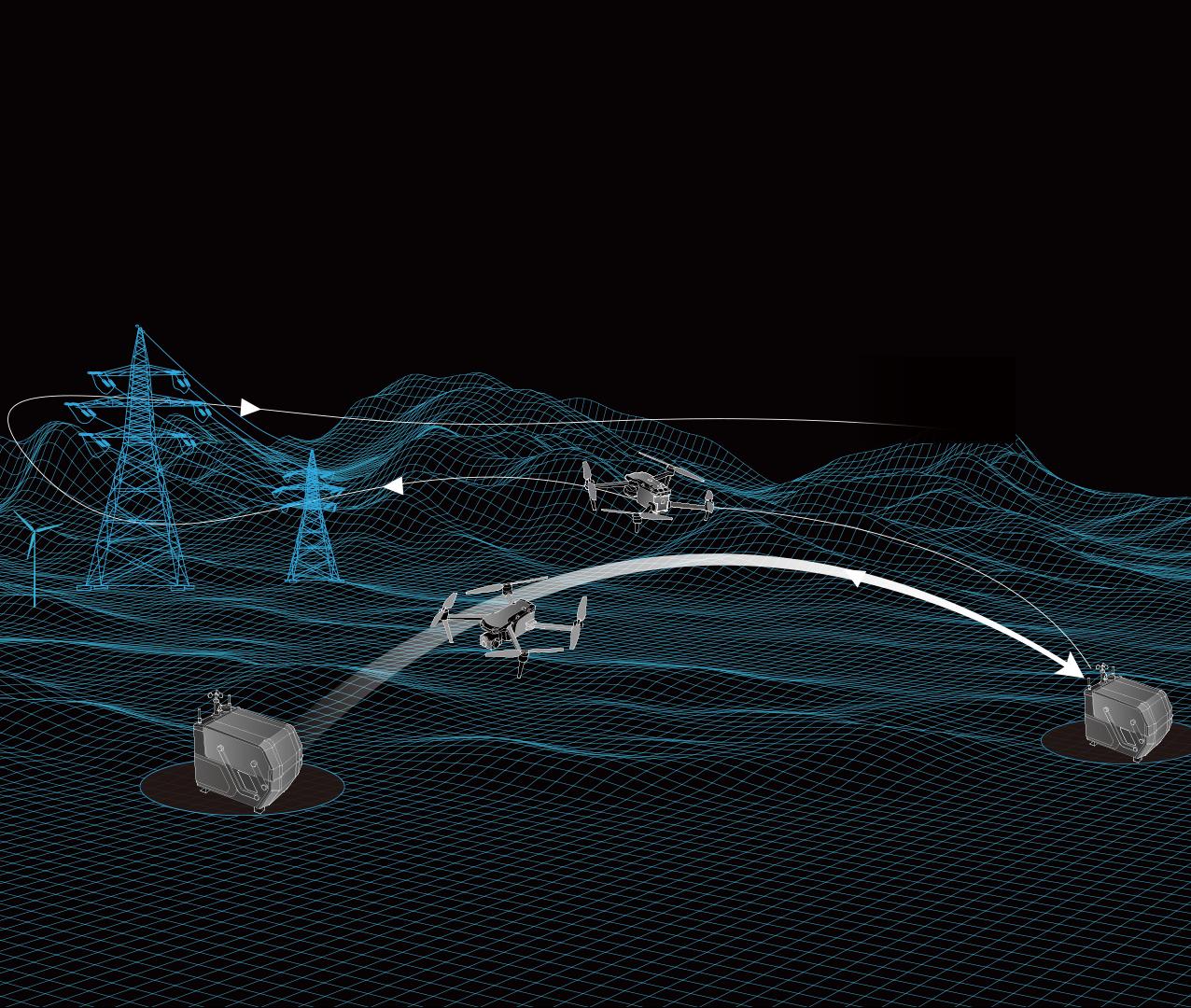

Relay Flight for Extended Range and Uninterrupted Opeartions
The K01 has a deep standby function, and the standby power consumption is reduced to 10W, which can be used for a long time in the solar-powered state.
Smart Air-Conditioning & Heating
The smart climate control system maintains optimal operating temperatures for internal equipment, ensuring reliability in extreme weather conditions.
Specs of K01
| Specification | Details |
| Dimensions (cover closed) | Dock:1460 mm x 1460 mm x 1590 mm |
| Weather station | 550 mm x 766 mm x 2300 mm |
| Weight | ≤240 kg |
| Communication mechanism | ETHERNET ACCESS(10/100/1000Mbps adaptive Ethernet interface) |
| Compatible UAV | S400E |
| Charging mode | Auto charging |
| Landing positioning | RTK, vision redundancy |
| Video transmission & control distance | 8 km |
| Work temperature range | -35℃~50℃ |
| Work humidity range | ≤95% |
| Max work altitude | 5000m |
| IP level | IP54 |
| Function | UPS uninterruptible power supply, night landing |
| Power consumption | 1700W(max) |
| Weather monitoring | Wind speed, rainfall, temperature, humidity, air pressure |
| Back-end control mechanism | WEB |
| SDK development | Yes |
Application
Power inspection
Smart city
Ecological protection
Emergency & firefighting
Smart industrial park
